Case study:Rodley weir by pass channel

From RESTORE
Jump to: navigation, search
4.00
(one vote)


To discuss or comment on this case study, please use the discussion page.


Location: 53° 49' 11", -1° 38' 41"
Edit location
Loading map...
Left click to look around in the map, and use the wheel of your mouse to zoom in and out.


Project overview

Edit project overview
Status In progress
Project web site http://www.yorkshirewater.com/our-environment/biodiversity/river-restoration-programme.aspx
Themes Environmental flows and water resources, Fisheries, Habitat and biodiversity, Hydromorphology, Monitoring, Social benefits, Water quality, Urban
Country England
Main contact forename Kathryn
Main contact surname Turner
Main contact user ID User:Dr Turner
Contact organisation Yorkshire Water
Contact organisation web site http://www.yorkshirewater.com/our-environment/biodiversity.aspx
Partner organisations
Parent multi-site project

Yorkshire Water River Restoration

This is a parent project
encompassing the following
projects
No
Project picture

Project summary

Edit project overview to modify the project summary.


Addressing barriers to fish passage: The Rodley weir by pass channel.

Water industry investment has transformed the water quality of our rivers over the last 25 years and morphology is now one of the significant challenges to return river life to as natural condition as they can be. Yorkshires industrial legacy of many modifications and weirs in our working rivers presents a significant challenge in meeting the Water Framework Directive (WFD)requirements for fish passage in main rivers, as well as the Humber River Basin Plan goal of having sustainable populations of migratory fish in all Yorkshire rivers by 2021. In the last three years Yorkshire Water has undertaken several projects designed to investigate how to tackle these barriers and other water quality issues. Rodley weir bypass channel is the first of these to be completed.

Rodley weir sits in the main channel of the River Aire, it has a head of 1.8m and presents a significant barrier to the movement both of migratory species, such as brown trout, lampreys, salmon and European eels, and other course fish movement within the river.

This weir was identified as one of around 11 key barriers to fish movement in the Aire by the Environment Agency and Aire action group , the others being Chapel Haddlesey Weir, Knottingley Weir, Knostrop and Crown Point Weirs (Leeds), Armley Mills Weir (Leeds), St Ann’s Mills and Burley Mills Weirs (Kirkstall, Leeds), Salts Mill Weir (Bradford), Hirst Mill Weir (Saltaire, Bradford), Systagenix Weir (Gargrave). Projects to address these barriers are under development by multiple agencies including the Environment Agency, Canal and Rivers Trust, Leeds and Bradford Councils, the Bradford amateur rowing club, and Aire rivers trust.

Site ownership The Rodley weir is bounded on one side by Rodley Nature Reserve and on the other by privately owned land. Yorkshire water owns the Rodley Nature Reserve land which was leased to the Rodley Nature Reserve following the reduction in size of the Rodley waste water treatment works. Ownership of the weir is split between the two sides of the river. As the private landowner declined to discuss the project, removal of the weir had to be ruled out . The options were then either an on-weir fish pass on the Yorkshire Water side, such as a Larinier Super Active Baffle Fish pass or a by-pass channel.

Choice of solution Since the weir could not be taken out and more natural processes restored in the river the highest quality solution was a bypass channel. Building of new river habitat has associated additional biodiversity benefits, and was chosen above an on weir fish pass ,which would have an ongoing maintenance cost associated with it, and would not provide any additional habitat for other species. The new channel was designed by our partners ARUP.

The route of the fish pass was heavily constrained by the presence of an overhead electricity pylon located on the left bank of the Aire adjacent to the weir and carrying 132,000V electricity cables, around which the utility provider imposed a 12m no-dig zone as well as a 6m height restriction beneath the cables. In addition to the physical constraints associated with the pylon, the ARUP design team’s challenges included complex hydraulic factors. Ensuring that a strong flow emerged from the fish pass was critical to attract fish to the entrance, whilst ensuring that the channel was deep enough and water velocities low enough for fish to advance upstream without becoming exhausted during migration flows.

Rock armour stone on the base and bed of the channel encourages heterogeneous flow conditions, provides crevices for refuge and protection against damage during high flow events. The design includes provision for maintenance with access to each side of the channel; a landscape and planting scheme was devised with the additional function of providing protection to the channel banks in the short term until vegetation was established. Redi-Rock wall blocks (precast concrete modular wall system with the look of natural stone) were used at the downstream entrance to the channel. This addressed the construction issues that were faced due to piling not being possible under the overhead services lines.

The land on which the pass was built was relatively low lying with a tall herb ruderal flora and subject to flood during high flows. The development of the project and design was done with regular meetings with various stakeholders including the Environment Agency, Rodley Nature Reserve, Yorkshire Water, ARUP and the contractors MMB .

Construction We broke ground on the project in Winter 2011/Spring 2012. Access into the site was restricted as the only route was via a narrow swing bridge across the Leeds-Liverpool canal, with a weight restriction of 25 tonnes. This constraint affected the size of equipment able to reach the site. Working in and adjacent to the River Aire during the wettest summer in 100 years also presented challenges for the project team. River levels would rise rapidly over a matter of hours so it was necessary for the team to monitor levels throughout the day, ceasing work if levels were too high , this resulted in materials and structures being washed away, followed by some significant rebuilding. The irony being that we avoided construction during the previous winter which turned out to be a dry and calm one! This led to additional time and a partial redesign to adapt the pass to high flows, and has resulted in an additional spend of around £350k on the project.

We reused all excavated materials on site creating raised bird hides and pond banks on Rodley Nature Reserve, thereby saving both disposal costs and landfill space, whilst increasing the biodiversity value of the site. The channel was completed in July 2013. The bare ground is under colonisation from Himalayan balsam which is regularly tackled by the reserve staff to allow a more native flora to colonise.

We set up a fish monitoring project which placed solar powered data loggers in the channel to pick up fish tagged this summer.

We are very proud of our achievement on this site and the delivery of an innovative solution to the problem posed by Rodley weir and meeting the WFD requirement for fish passage that supports a much higher biodiversity than any on-weir solution. It forms part of our commitment to “taking responsibility of the water environment for good” and our investigations into how to meet the regulatory requirements for healthy aquatic environments without putting up customers’ bills.

Monitoring surveys and results

Edit project overview to modify the Monitoring survey and results.


Preliminary data from 88 tagged trout show that fish can find and navigate the pass. We will review the data in spring 2014 to assess fish behviour in the channel.

The channel has colonised well with the hard work of Rodley Nature Reserve volunteers who have hand pulled Himalayan balsam to allow more native plants to flourish. The visitors and volunteers of the reserver report frequent sightings of dippers and grey wagtais and a male otter has moved into the site and is using the channel as a hunting station - indeed some of our tagged fish may have been dinner.

Lessons learnt

Edit project overview to modify the lessons learnt.


Equipment and materials are highly vulnerable to storms during construcion and their storage must account for 100 yr storm events.


Image gallery

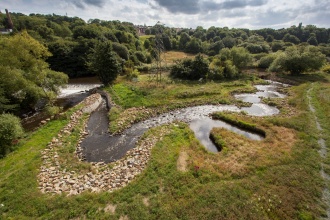

Rodley weir bypass channel
Rodley bypass channel design (ARUP)


Catchment and subcatchment

Catchment

River basin district Humber
River basin Aire and Calder

Subcatchment

River name Aire from Esholt STW to River Calder
Area category 100 - 1000 km²
Area (km2)
Maximum altitude category 200 - 500 m
Maximum altitude (m) 233
233 m
0.233 km
23,300 cm
Dominant geology Calcareous
Ecoregion Great Britain
Dominant land cover Suburban
Waterbody ID GB104027063032



Other case studies in this subcatchment: Kirkstall Valley Weir Fish Passes Project


Site

Name Rodley Nature Reserve
WFD water body codes GB104027063032
WFD (national) typology
WFD water body name River Aire
Pre-project morphology
Reference morphology
Desired post project morphology
Heavily modified water body No
National/international site designation
Local/regional site designations
Protected species present Yes
Invasive species present Yes
Species of interest Otter, European eel, brown trout, salmon
Dominant hydrology
Dominant substrate
River corridor land use
Average bankfull channel width category
Average bankfull channel width (m)
Average bankfull channel depth category
Average bankfull channel depth (m)
Mean discharge category
Mean annual discharge (m3/s)
Average channel gradient category
Average channel gradient
Average unit stream power (W/m2)


Project background

Reach length directly affected (m)
Project started 2010/04/05
Works started 2012/02/06
Works completed 2013/07/05
Project completed
Total cost category 500 - 1000 k€
Total cost (k€)
Benefit to cost ratio
Funding sources Yorkshire Water 95% Environment Agency 5%

Cost for project phases

Phase cost category cost exact (k€) Lead organisation Contact forename Contact surname
Investigation and design 100 - 500 k€ ARUP Will McBain
Stakeholder engagement and communication
Works and works supervision MMB
Post-project management and maintenance 1 - 10 k€ Yorkshire water Kathryn Turner
Monitoring 10 - 50 k€ Yorkshire Water Kathryn Turner



Reasons for river restoration

Mitigation of a pressure Barriers to fish migration
Hydromorphology Continuity for organisms, Continuity of sediment transport, Channel pattern/planform, Quantity & dynamics of flow, Substrate conditions, Width & depth variation
Biology Fish
Physico-chemical
Other reasons for the project Water quality


Measures

Structural measures
Bank/bed modifications Building nature-like bypass channel
Floodplain / River corridor
Planform / Channel pattern
Other Created bird hides and pond banks on Rodley Nature Reserve using site-won materials
Non-structural measures
Management interventions
Social measures (incl. engagement)
Other


Monitoring

Hydromorphological quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Biological quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Physico-chemical quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Any other monitoring, e.g. social, economic

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative


Monitoring documents



Additional documents and videos


Additional links and references

Link Description
http://www.therrc.co.uk/newsletters/rrn 43.pdf RRC newsletter issue 43 including an article on the Rodley weir by-pass channel
