Case study:River Wandle: Butter Hill Phase 3

From RESTORE
Jump to: navigation, search
0.00
(0 votes)


To discuss or comment on this case study, please use the discussion page.


Location: 51° 22' 13", -0° 9' 36"
Edit location
Loading map...
Left click to look around in the map, and use the wheel of your mouse to zoom in and out.


Project overview

Edit project overview
Status Complete
Project web site
Themes Fisheries, Habitat and biodiversity, Social benefits, Urban
Country England
Main contact forename Tim
Main contact surname Longstaff
Main contact user ID
Contact organisation Wandle Trust
Contact organisation web site http://www.wandletrust.org
Partner organisations Environment Agency, Defra, Thames Water, National Lottery's Heritage Lottery Fund
Parent multi-site project

Case_study:Butter Hill restoration project, River Wandle

This is a parent project
encompassing the following
projects
No

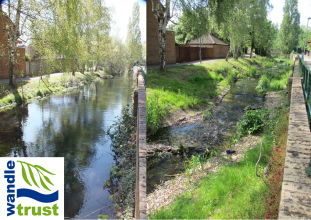

Before & After Butter Hill Phase 3 Works © Wandle Trust

Project summary

Edit project overview to modify the project summary.


This Project is part of a larger scheme with the overall aim of establishing a population of brown trout in the Carshalton arm of the River Wandle for the first time in over 80 years. For more background on this larger scheme, please refer to the parent project "River Wandle Restoration Project".

Flood risk and hydraulic assessment of the weir and fish pass were carried out in conjunction with Matt Horritt Consulting. Works were delivered with the help of appointed contractors Aquamaintain Ltd under the supervision of South East Rivers Trust staff.   The weir at Butter Hill bridge was partially lowered to restore natural flow to the upstream channel and the fish pass modified to improve its efficiency.

Upstream of the weir the over-straight, over-wide channel was narrowed and modified to create a meandering sequence using a combination of gravel, hazel faggots, chestnut posts and coir geotextile with silt from the channel and brash as backfill.   The banks on both sides of the channel were then re-graded to create marginal and transitional habitats. A variety of marginal plant species were introduced to assist with naturalisation by a team of 15 volunteers.

Downstream, for 300 m, channel narrowing and meandering was continued and gravel and Large Woody Debris was introduced along the whole reach to further diversify the river flow and replicate natural hydromorphological processes, creating habitats for invertebrates and all life stages of fish.

Trees were also removed in phases over a two year period to increase light in selected places and encourage plant growth along the whole 500 m reach.
