Case study:The Irfon Special Area of Conservation Project

From RESTORE
Jump to: navigation, search
0.00
(0 votes)


To discuss or comment on this case study, please use the discussion page.


Location: 52° 9' 33", -3° 33' 51"
Edit location
Loading map...
Left click to look around in the map, and use the wheel of your mouse to zoom in and out.


Project overview

Edit project overview
Status Complete
Project web site http://www.wyeuskfoundation.org/isac/
Themes Environmental flows and water resources, Habitat and biodiversity, Land use management - forestry, Monitoring, Water quality
Country Wales
Main contact forename Stephen
Main contact surname Marsh-Smith
Main contact user ID
Contact organisation Wye & Usk Foundation
Contact organisation web site http://www.wyeuskfoundation.org/
Partner organisations Environment Agency Wales, Rivers Trust, The National Museum of Wales
Parent multi-site project
This is a parent project
encompassing the following
projects
No

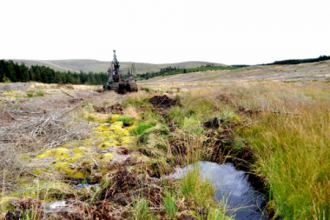

Project picture

Project summary

Edit project overview to modify the project summary.


The ISAC Project

The EU Life+ fund supports bids in two categories - nature and biodiversity. The former enables actions to be taken to restore Special Areas of Conservation (SACs), such as the Wye and Usk. In 2008 the Wye & Usk Foundation submitted a bid and, after a rigorous justification phase, we were fortunate to be one of just four successful UK candidates. We chose the Irfon as it had all the SAC species present - though only just with some! Our partners include the Environment Agency Wales, The Rivers Trust and the National Museum of Wales. We are also assisted with matching funds by Countryside Council for Wales. In 2013 Environment Agency Wales and Countryside Council for Wales merged to form Natural Resources Wales.


Project Summary


Water Quality

The plan included both specific actions for the listed SAC species and two main areas of work. In the upper Irfon above Llanwrtyd Wells practically all of the river and its tributaries drain uplands that are heavily afforested. In our pHish project, we set about correcting the low pH - and hence restoring invertebrate and fish life - of both the Irfon and upper Wye catchment. We achieved success in the upper Wye, Tarenig, Bidno and other streams in the area and salmon are now present in good quantities. We were, however, only partially successful on the Irfon. This was for two reasons. Firstly, a smaller proportion of the upper Wye catchment had been forested than the Irfon. Secondly, the Wye had many more hydrological sources where powdered limestone could be introduced. On the Irfon, however, these were largely obliterated by extensive forestry drains, which also compound the pH and hydrological problems by accelerating run off. Within ISAC we worked with both the private and public forestry interests to recover these crucial wetland areas and to correct the effects of the severe drainage system. Coniferous trees were removed and forest design plans altered to keep these restored wetland sections wet.


Habitat Restoration

The other essential part of the project was the restoration of the riparian habitat of the main tributaries of the Irfon. Double bank fencing, erosion repair, coppicing and introducing instream features and water gates comprised the bulk of the work. In all 32km of SAC designated sections of the Cledan, South Dulas, Cammdwr, Cammarch, Cynffiad, Garth Dulas and Chwefru were restored.

New techniques for pleaching riparian trees into the channel and soft revetments using hawthorn were developed during the project and proven be effective on a catchment scale.


Protecting Annex II Species

Amongst the species that benefited, Atlantic salmon (Salmon salar) are perhaps be the most obvious as both the acid waters work and habitat restoration increased the survival rates of juveniles. These works also benefited the other SAC species, including white clawed crayfish(Austropotamobius pallipes), freshwater pearl mussel (Margaritifera margaritifera), the lampreys (Petromyzon marinus, Lampetra fluviatilis, Lampetra planeri) shad(Alosa fallax, Alosa alosa) bullhead (Cottus gobio), otter (Lutra lutra) and rannunculus sp.

Captive breeding programmes were also established within the project by Natural Resources Wales at Abercynrig hatchery for white clawed crayfish and freshwater pearl mussel.


Monitoring

Whilst ISAC was primarily a 'doing' project, some monitoring was required to guide actions and quantify results. Fish populations were studied by annual electrofishing surveys, a baseline having been established by Natural Resources Wales in 2010.

Acid waters monitoring by the National Museum of Wales comprises a network of 22 sites recording pH, diatoms, water chemistry and invertebrate analysis. Further to this, otter and rannunculus distribution was assessed during the project.

The Rivers Trusts were responsible for disseminating the findings and results of ISAC using their links with other EU projects and rivers' trusts. This project allowed us to protect what we had and to restore what we might lose in this important sub-catchmnet of the Wye SAC, so by enhancing some of the most important species and habitats in the UK.

Monitoring surveys and results

This case study hasn’t got any Monitoring survey and results, you can add some by editing the project overview.

Lessons learnt

This case study hasn’t got any lessons learnt, you can add some by editing the project overview.


Image gallery




Catchment and subcatchment



Site

Name
WFD water body codes
WFD (national) typology
WFD water body name
Pre-project morphology
Reference morphology
Desired post project morphology
Heavily modified water body
National/international site designation
Local/regional site designations
Protected species present
Invasive species present
Species of interest
Dominant hydrology
Dominant substrate
River corridor land use
Average bankfull channel width category
Average bankfull channel width (m)
Average bankfull channel depth category
Average bankfull channel depth (m)
Mean discharge category
Mean annual discharge (m3/s)
Average channel gradient category
Average channel gradient
Average unit stream power (W/m2)


Project background

Reach length directly affected (m)
Project started 2010/01/01
Works started
Works completed
Project completed 2013/12/31
Total cost category
Total cost (k€)
Benefit to cost ratio
Funding sources

Cost for project phases

Phase cost category cost exact (k€) Lead organisation Contact forename Contact surname
Investigation and design
Stakeholder engagement and communication
Works and works supervision
Post-project management and maintenance
Monitoring



Reasons for river restoration

Mitigation of a pressure Acidic water conditions, Damaged fish population
Hydromorphology
Biology
Physico-chemical
Other reasons for the project


Measures

Structural measures
Bank/bed modifications Installation of watergates, Fencing, Erosion Repair, Cut back of trees
Floodplain / River corridor
Planform / Channel pattern
Other
Non-structural measures
Management interventions Stocking
Social measures (incl. engagement)
Other


Monitoring

Hydromorphological quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Biological quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Physico-chemical quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Any other monitoring, e.g. social, economic

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative
