Project overview

Edit project overview
Status Complete
Project web site
Themes Hydropower
Country Switzerland
Main contact forename Rolf-Jürgen
Main contact surname Gebler
Main contact user ID User:Kasvio
Contact organisation Alpiq
Contact organisation web site http://www.alpiq.com
Partner organisations
Parent multi-site project
This is a parent project
encompassing the following
projects
No

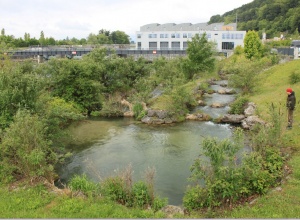

The rock-cascade fishpass. (photo by Pinja Kasvio)

Project summary

Edit project overview to modify the project summary.


Ruppoldingen in the River Aare is a good example of a combination of a long bypass channel with reproduction habitats and a fish pass near to the power plant. The bypass was constructed in 2001 during the renewal of the power plant at the place of the old headrace channel. The planning and construction of the bypass at Ruppoldingen served as the first example to gain experience for similar constuctions in other power plants and especially for the large facilities in Rheinfelden.

In Ruppoldingen, the aim was to mitigate the impacts of the hydropower plant, allowing free fish migration and compensate for loss of habitats and also to design a small river that creates habitats for the fish that are typical for the area. The scheme was two-fold. Firstly a 155 meter long natural fish pass close to the turbines. The mean gradient of the fish pass is 3.8%. A second length was also created further downstream of the plant as the bypass that is 1,2 km and mean gradient 0,5%. 2-5 m3/s is lead to the bypass channel as environmental flow. A rock cascade fish pass connects the bypass to the power plant. This channel comprised two arms, one which was shallower with gravel riffles installed and a deeper channel for migration. The aim was to re-create a natural alpine stream.

According to monitoring, juveniles of greyling have been found in the bypass channel and big fish species like pike, carp, barbell and wells catfish have used it. These suggests that the bypass channel is providing a new reproductive area. By the measures at Ruppoldingen the power company Alpiq has got the Naturemade Star -certification which is considered to be the most demanding Green Electricity Certification for hydropower.

Monitoring surveys and results

Edit project overview to modify the Monitoring survey and results.


According to monitoring, juveniles of greyling have been found in the bypass channel and big fish species like pike, carp, barbell and wells catfish have used it. These suggests that the bypass channel is providing a new reproductive area.

Lessons learnt

This case study hasn’t got any lessons learnt, you can add some by editing the project overview.


Image gallery


The map and plan of Ruppoldingen fishpass.
Nature-like bypass channel for fish (photo Pinja Kasvio).
Rock cascade fish pass (photo Pinja Kasvio)
Duck in the nature-like bypass channel (photo Pinja Kasvio)
