Case study:Robledo de Chavela dam removal

From RESTORE
Jump to: navigation, search
0.00
(0 votes)


To discuss or comment on this case study, please use the discussion page.


Location: 40° 30' 18", -4° 14' 4"
Edit location
Loading map...
Left click to look around in the map, and use the wheel of your mouse to zoom in and out.


Project overview

Edit project overview
Status Complete
Project web site
Themes Social benefits, Water quality, Urban
Country Spain
Main contact forename Rincón Sanz
Main contact surname Gonzalo
Main contact user ID
Contact organisation
Contact organisation web site
Partner organisations
Parent multi-site project
This is a parent project
encompassing the following
projects
No

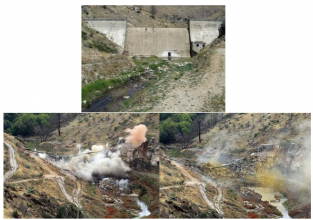

Moment of the demolition of Robledo de Chavela dam. The first photo shows the dam before its removal. The second picture shows the demolition moment and the third the state of the dam after demolition. Photo Credits: Ministry of Agriculture and Fishing, Food and Environment (MAPAMA).

Project summary

Edit project overview to modify the project summary.


The removal of the Robledo dam was a milestone as to be the highest dam demolished in Spain, and possibly, in Europe.

The work carried out, besides the removal of the dam wall, consisted of the extraction and relocation of sediments, the capture and transfer of 4500 specimens of native fish, delimitation of the channel with riprap, slope profiling and reforestation of the riverbank.

The dam was demolished on September 29, 2014, by the use of 1.2 tons of explosives. More than 9,000 m3 of concrete from the wall of the dam were demolished.

Monitoring surveys and results

Edit project overview to modify the Monitoring survey and results.


Due to the problems of sediment contamination stored upstream of the dam, a study was carried out prior to the removal in order to make a diagnosis of the sediments and their treatment. A plan is implemented to remove some of these sediments and place them in higher areas where they were confined and stabilized by planting native vegetation. Two years after the removal of the dam, a monitoring plan was conducted to measure:

- Physicochemical parameters of water as temperature, dissolved oxygen,

conductivity and pH.

- Habitat availability.

- Quality of the riparian forest.

- Flora (macrophytes) and fauna (macroinvertebrates and fish) present in the river, as well as exotic species.

The fish community in the Cofio River near the Robledo dam is: Rainbow trout (Oncorhynchus mykiss), Iberian barbel (Luciobarbus bocagei), chub (Squalius pyrenaicus), calandino (Squalius alburnoides) and Iberian gudgeon (Gobio lozanoi), being Squalius alburnoides the dominant specie. All are native species of the Tajo River Basin except from the rainbow trout that is exotic and comes from sport fishing.

Sampling points were determined both upstream and downstream from where the dam was located. The main results of this monitoring show clear signs of recovery in the river reach affected by the presence of the dam, with some differences between the areas that were located upstream and downstream of the dam.

Lessons learnt

Edit project overview to modify the lessons learnt.


The removal of the Robledo dam stands out as an example of participatory management, in which the importance of administrative coordination between different social agents is evidenced.

The Robledo dam removal will promote the recovery of altered river processes as a consequence of the construction, exploitation and abandonment of the dam. It will therefore contribute to the improvement of the ecological status of the Cofio River and the native fish populations in this river.

A monitoring program was carried out after the dam removal (in August 2016) showing environmental improvements in the river after the removal. The importance of performing this monitoring before and after the dam removal is emphasized in order to quantify the effects that this type of actions have on the river.
