Case study:Newe Fish Pass Improvements project

From RESTORE
Jump to: navigation, search
0.00
(0 votes)


To discuss or comment on this case study, please use the discussion page.


Location: 57° 11' 42", -3° 2' 38"
Edit location
Loading map...
Left click to look around in the map, and use the wheel of your mouse to zoom in and out.


Project overview

Edit project overview
Status Complete
Project web site
Themes Fisheries
Country Scotland
Main contact forename Jamie
Main contact surname Urquhart
Main contact user ID
Contact organisation The River Don Trust
Contact organisation web site http://www.riverdon.org.uk/
Partner organisations
Parent multi-site project
This is a parent project
encompassing the following
projects
No

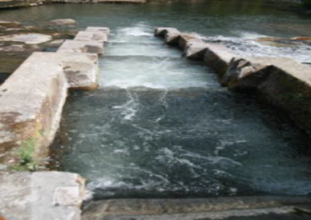

After improvement project, photograph courtesy of The River Don Trust

Project summary

Edit project overview to modify the project summary.


Background
The River Don Trust has undertaken a number of obstacle assessments across the catchment over the past year. One of these sites surveyed was the Fish Pass on the Newe weir. The fish pass was created back in the 1950’s when the old hydro power scheme was in use at the site. Whilst there has been some remedial works to the weir itself over the years by its owners the Fishery Board there has never been any formal action taken to assess or improve the fish pass.

The fish pass is known to function properly otherwise the 200km of tributaries and mainstem upstream would be devoid of salmon which is far from the case. However it is evident that the structure under certain flow conditions can delay fish migration. Following a survey at the site it was deemed appropriate that where possible we should begin with a series of improvements to the structure to reduce the delay associated with it for upstream migrating salmonids. From previous discussions it was apparent that minor alterations to the pass would both be acceptable and achievable by those concerned.

Methods
This first improvement was focused upon reducing the turbulence associated with the boxes and reducing the pluming of water as it leaves the face of the notch in each box of the pass. In order to achieve this the Trust biologist researched information relating to these factors and found evidence to support the creation of an ‘adherent nappe’ on each notch.

The current design of the fish pass structure has square edged notches between each box. When water flows of a square edge at force it plumes and creates a gap between the water and the surface of the structure itself (think of a waterfall). This gap created is also known as an “aerated nappe”.

An aerated nappe prevents fish from swimming up and through the plume and causes them to have to jump. Fish are essentially designed to swim, and while they can clearly jump, especially salmonids, a jumping fish is a sign that they are in difficulty. To surmount an obstacle successfully a jumping fish has to locate the right spot from which to jump, get its trajectory correct, land safely, and be pointing in a direction that enables it to succeed in swimming away upstream. Jumping is thus uncertain advertises the fish’s presence to predators, risking collision damage with structures, with high risk of failure to achieve the correct height and trajectory, and with every risk of being swept back downstream if it does not land with head pointing upstream (because of the large forces on its side if it is in any way across the flow).

Aerated nappes, especially on fish pass notches, must therefore be avoided in favor of adherent nappes where the water flows over the structure smoothly without leaving its surface creating a swim obstacle as opposed to a jump. Therefore adherent nappes will be created at the Newe Fish Pass by cutting angled sections of the concrete from the squared edge notches at the bottom of each box. The Trust biologist prepared the following design using measurements modified to suit the dimensions of the Newe Fish Pass from the Environment Agency Fish Pass Guidance Manual (2010).

Monitoring surveys and results

Edit project overview to modify the Monitoring survey and results.


Some monitoring of the pass will enable the Board and Trust to ascertain if the remedial works have proved to be effective. If feasible the River Don Trust hope to use an underwater camera to ascertain if fish are passing though the pass under a wide range of flows.

Lessons learnt

Edit project overview to modify the lessons learnt.


It was apparent that the bottom box may still cause problems for ascending fish due to the distance between the pool and the bottom of the box presented by an apron extending out some 1.05m under the water which could restrict fish from jumping into the box under certain flow conditions. Further work will investigate options to alleviate any problems associated with this part of the structure.


Image gallery




Catchment and subcatchment



Site

Name
WFD water body codes
WFD (national) typology
WFD water body name
Pre-project morphology
Reference morphology
Desired post project morphology
Heavily modified water body
National/international site designation
Local/regional site designations
Protected species present
Invasive species present
Species of interest
Dominant hydrology
Dominant substrate
River corridor land use
Average bankfull channel width category
Average bankfull channel width (m)
Average bankfull channel depth category
Average bankfull channel depth (m)
Mean discharge category
Mean annual discharge (m3/s)
Average channel gradient category
Average channel gradient
Average unit stream power (W/m2)


Project background

Reach length directly affected (m)
Project started 2013/01/01
Works started 2013/07/01
Works completed 2013/09/30
Project completed 2013/12/31
Total cost category
Total cost (k€)
Benefit to cost ratio
Funding sources

Cost for project phases

Phase cost category cost exact (k€) Lead organisation Contact forename Contact surname
Investigation and design
Stakeholder engagement and communication
Works and works supervision
Post-project management and maintenance
Monitoring



Reasons for river restoration

Mitigation of a pressure
Hydromorphology
Biology Fish
Physico-chemical
Other reasons for the project


Measures

Structural measures
Bank/bed modifications Weir removal/modification for easement of fish passage
Floodplain / River corridor
Planform / Channel pattern
Other
Non-structural measures
Management interventions
Social measures (incl. engagement)
Other


Monitoring

Hydromorphological quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Biological quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Physico-chemical quality elements

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative

Any other monitoring, e.g. social, economic

Element When monitored Type of monitoring Control site used Result
Before measures After measures Qualitative Quantitative


Monitoring documents



Additional documents and videos


Additional links and references

Link Description
http://www.riverdon.org.uk/pdf/RDT%20Projects/RDT%20Update%20on%20Newe%20Fish%20Pass%20Improvements%20Sept%202013..pdf River Don Trust - Newe Fish Pass Improvements Update September 2013 (with photographs)
