Case study:Bocq river (Walphy - LIFE project)

0.00

(0 votes)

To discuss or comment on this case study, please use the discussion page.

Location: 50° 19' 21.02" N, 5° 0' 30.92" E

Edit location

Loading map...

{"format":"googlemaps3","type":"HYBRID","minzoom":false,"maxzoom":false,"types":["ROADMAP","SATELLITE","HYBRID","TERRAIN"],"limit":50,"offset":0,"link":"all","sort":[""],"order":[],"headers":"show","mainlabel":"","intro":"","outro":"","searchlabel":"... further results","default":"","import-annotation":false,"width":"auto","height":"400px","centre":false,"title":"","label":"","icon":"","lines":[],"polygons":[],"circles":[],"rectangles":[],"copycoords":false,"static":false,"visitedicon":"","wmsoverlay":false,"zoom":false,"layers":[],"controls":["pan","zoom","type","scale","streetview","rotate"],"zoomstyle":"DEFAULT","typestyle":"DEFAULT","autoinfowindows":false,"resizable":false,"kmlrezoom":false,"poi":true,"cluster":false,"clustergridsize":60,"clustermaxzoom":20,"clusterzoomonclick":true,"clusteraveragecenter":true,"clusterminsize":2,"imageoverlays":[],"kml":[],"gkml":[""],"searchmarkers":"","fullscreen":false,"scrollwheelzoom":false,"showtitle":false,"hidenamespace":true,"template":"Location map popup","userparam":"","activeicon":"","pagelabel":false,"ajaxcoordproperty":"","ajaxquery":"","locations":[{"text":"\u003Cp\u003E\u003Cbr /\u003E\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003EProject Title:\u003C/b\u003E Bocq river (Walphy - LIFE project)\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003ECountry:\u003C/b\u003E \u003Ca href=\"/wiki/index.php?title=Belgium\" title=\"Belgium\"\u003EBelgium\u003C/a\u003E\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003EProject Status:\u003C/b\u003E Complete\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003EThemes:\u003C/b\u003E Monitoring\n\u003C/p\u003E\u003Cp\u003E\u003Cbr /\u003E\n\u003C/p\u003E","title":"Bocq river (Walphy - LIFE project)","link":"","lat":50.322505850464,"lon":5.0085898116231,"icon":"/wiki/images/c/ce/Green_marker.png"},{"text":"\u003Cp\u003E\u003Cbr /\u003E\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003EProject Title:\u003C/b\u003E Eau Blanche River (Walphy - LIFE project)\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003ECountry:\u003C/b\u003E \u003Ca href=\"/wiki/index.php?title=Belgium\" title=\"Belgium\"\u003EBelgium\u003C/a\u003E\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003EProject Status:\u003C/b\u003E Complete\n\u003C/p\u003E\u003Cp\u003E\u003Cb\u003EThemes:\u003C/b\u003E Monitoring\n\u003C/p\u003E\u003Cp\u003E\u003Cbr /\u003E\n\u003C/p\u003E","title":"Eau Blanche River (Walphy - LIFE project)","link":"","lat":50.089284099569,"lon":4.5372764021158,"icon":"/wiki/images/a/af/Red_marker.png"}]}

Left click to look around in the map, and use the wheel of your mouse to zoom in and out.

Project overview

Edit project overview

Status	Complete
Project web site	http://walphy.be
Themes	Habitat and biodiversity, Hydromorphology, Monitoring
Country	Belgium
Main contact forename	Alexandre
Main contact surname	Peeters
Main contact user ID	User:AlexBE
Contact organisation	Service Public de Wallonie (SPW)
Contact organisation web site	http://walphy.be
Partner organisations	University of Liege, University of Namur
This is a parent project encompassing the following projects	Eau Blanche River (Walphy - LIFE project)

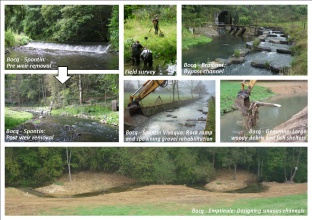

Overview of the restoration projects undertaken on the Bocq catchment

Project summary

Edit project overview to modify the project summary.

In the context of fulfilling the Water Framework Directive requirements, the LIFE+ project Walphy allowed experimental restoration projects to be undertaken on two medium-size catchments of the Meuse basin in Wallonia (Belgium) between 2009 and 2014: the Bocq catchment and the Eau Blanche Catchment. This five-year long project was funded by the European Union and the Service Public de Wallonie (SPW). It involved three institutions: the SPW was in charge of the experimental restoration projects while the Universities of Liège and Namur were responsible for evaluating the success of the restoration projects.

The Bocq is a medium-size gravel-bed river which has been strongly impacted by numerous barriers, impeding the free movement of fish and bedload (an average of one weir every 1.8 km). In addition, some river reaches have been straightened over the last few centuries, which has led to significant loss of habitat.

A multi-scale assessment of hydromorphological conditions of the Bocq catchment has led to a large-scale restoration project implemented mainly in the lower and middle course of the Bocq River itself. 22 barriers (mainly old weirs of an average height of 1.35 m) have been removed or modified in order to reconnect the Bocq with the Meuse and to improve access to areas of spawning grounds. To date, only two barriers remain in the middle Bocq. In addition, 3.6 km of modified reaches were improved through a wide range of rehabilitation techniques such as designing sinuous channels, re-instating spawning grounds, improving fish shelters, improving culvert bed, etc.

Monitoring surveys and results

Edit project overview to modify the Monitoring survey and results.

The success of the restoration projects was evaluated on the basis of a multi-disciplinary monitoring.

Hydromorphology was evaluated on five restored sites using microhabitat survey and three indices of physical quality. For all sites, hydromorphology was significantly improved 10-20 months post-rehabilitation, through the diversification of flows (depth, substrate, water velocity) and the creation of habitats (e.g. fish shelters, spawning areas and woody debris).

Biological quality, based on macroinvertebrates and fish communities, has generally showed a status quo or a slight increase 10-20 months post-completion. Nevertheless, ambitious rehabilitation measures such as weir removal and meanders restoration have resulted in the most positive effects, while less ambitious measures such as habitat diversification have led to more contrasted results. In addition, restoration of the longitudinal connectivity was beneficial for Grayling, designated as Natura 2000 species, and for eels, concerned with the Benelux convention.

The geomorphological monitoring has focused on the effect of barriers on sediment transport and the effectiveness of spawning gravel rehabilitation.

Lessons learnt

Edit project overview to modify the lessons learnt.

- Despite the short period of time (5 years) of this project, we realized afterwards the importance of achieving a multi-scale assessment and an initial state (pre-restoration) prior to restoration work.

- We implemented a wide range of demonstration techniques and we compared them in terms of cost-effectiveness (see the Manual of River Restoration Techniques on http://www.walphy.be/index.php?page=guide-technique).

- Most of the restoration projects could be implemented without acquiring the land but rather through negociations with the local community. This underlines the importance of engaging the local community.

- The time span of the project allowed us only 1-2 years of monitoring (post-restoration). Fortunately, the SPW funded a long-term monitoring (>3 years), which is crucial for accurate evaluation of success, especially for biological indicators.

- Finally, we hope the project to give a boost to future restoration projets in Wallonia.

Image gallery

Edit Image gallery

Bocq: Rehabilitation projects

Barriers location on the Bocq catchment pre and post Walphy project

Bocq at Yvoir: Fish passage

Bocq at Yvoir: Pre-barrages

Bocq at Yvoir: Weir removal

Bocq at Yvoir: Weir removal

Bocq at Spontin: Weir removal

Bocq at Spontin: Rock ramp

Bocq at Braibant: Bypass channel

Leignon at Ciney: Habitat diversification

Bocq at Emptinale: Designing sinuous channel

Bocq at Gemenne: Wood addition
